Edificio de gestión y atención a los usuarios de la zona náutico-deportiva. Denia

Marina Management and Customer Services Building. Denia

Situación/Location:
Zona Náutico Deportiva 3, Puerto de Denia. Denia

Promotor/Developer:
LICUAS, S.A.

Colaboradores/Collaborators:
Luís de Diego Fort, Arquitecto Técnico/Architectural Technologist, Dirección de Ejecución Material/Project Construction Management
IDEEE ALICANTE, S.L, Cálculo de estructuras/Structural engineering
Guillermo David Berenguer Solbes, Cálculo de Instalaciones/Structural installations

Constructor/Contractor:
LICUAS, S.A.

Fotógrafo/Photographer:
Miguel Paya Pérez

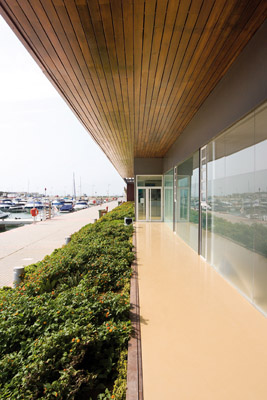

A timber surface rests on the ground and a cut and a fold generate a frame, outlining the two landscapes that can be seen from it: the town crowned by the castle and the marina, the open sea and the horizon. Beneath the great lintel, the brief is housed in a closed area, where the main functions of the building are located, and an open area, an exterior extension of the restaurant and cafeteria. This simple formal operation introduces the least possible visual intrusion while giving a new, nuanced view of the town’s seaward façade in a language that clearly alludes to the maritime activities that take place at this point.
The requirements of the brief are laid out in the rectangular, single-storey building within the shared wrapping of the roof. They comprise the following areas:
1) Administration, Shipping Control and Harbourmaster’s office
2) Customer Facilities and Services
3) Crew Facilities and Services
4) Restaurant and lounge area
The brief is laid out crosswise in two zones: an exterior zone for the restaurant/cafeteria terrace and a covered, closed zone for the other requirements. Longitudinally, it is also divided into two zones: a services zone (facilities and services for customers and crew members), which presents a solid blank wall to the car park, and a zone for attending to the public (restaurant and lounge area, administration, shipping control and harbourmaster’s office), completely transparent and open to the town and the marina.

1. Capialzado formado por panel sandwich in situ + bastidor de tubo tc 50.4 + chapa minionda + espuma de poliuretano proyectada/Reveal formed by in situ sandwich panel + 50x4 square hollow tubular frame + mini-corrugated sheeting + sprayed polyurethane foam

2. Bastidor de tubos tc 50.4 en largueros y travesaños/1250mm/Frame, 50x4 square hollow section grid spaced 1250mm

3. Falso techo formado por listones de madera de ipe para exteriores 100x22x4750mm/Suspended ceiling, ipe wood slats for exterior use, 100x22x4750mm

4. Carpintería de aluminio lacado s/planos de carpintería con acristalamiento Stadip 4+4/Lacquered aluminium joinery as in joinery details, Stadip 4+4 laminated security glazing

5. Chapa de cobre engatillada e=0,8mm/Copper sheeting, hooked, t = 0.8mm

6. Fieltro geotextil/Geotextile felt

7. Sistema monocapa tipo PN-4 no adherido. Lámina impermeabilizante de PVC de 1,2mm tipo membrana Rhenofol cg 1.2 de Intemper/Single-layer system type pn-4 loose-laid Waterproof membrane, 1.2mm PVC, Rhenofol CG type exterior-use membrane

8. Fieltro geotextil/Geotextile felt

9. Hormigón celular para formación de pendiente (1,50%) de 10cm de espesor medio/Foamed concrete laid to fall (1.5%), avg. thickness 10 cm

10. Fabrica de ladrillo cara vista modelo malpesa klinker blanco sin traba, armado con r 6/4 hiladas/Fair-face brick, white malpesa klinker model laid without bonding, reinforced with R6 bar every 4 courses

11. Espuma de poliuretano proyectada, e= 30mm/Sprayed polyurethane foam t = 30mm

12. Tabicon de LHD 7cm/Thick wall, 7cm double cellular bricks

13. Enfoscado maestreado de mortero de cemento 1:6/Rodded render, 1:6 cement mortar

14. Alicatado de piezas de gres 20 x 10cm tomadas con adhesivo, color blanco/Tiling, white 20x10cm stoneware tiles fixed with glue

15. Falso techo de placas de escayola lisa + pintura plástica lisa color s/d.f./Suspended ceiling of plain plaster slabs + smooth acrylic paint in colour of architect’s choice

16. Refuerzo de tela asfáltica en frente de forjado y en la primera hilada de flcv/Bituminous fabric reinforcement on slab edge and first course of cellular brick wall

17. Relleno de zahorra e=15cm compactada al 98% p.n./Hardcore fill t = 15cm compacted to 98% SP

18. Cama de arena y cemento en seco 20%/Bed of sand with 20% dry cement

19. Adoquinado de granito/Granite cobbles

20. Panelado de tableros de madera de ipe 2950 x 30 x 16mm sobre rastreles/Panelling, ipe wood boards 2950 x 30 x 16mm on laths

21. Partición divisoria entre distintos usos formada por 1/2 pie de ladrillo perforado acústico/Partition between different uses, ‘1/2 foot’ acoustic perforated bricks

22. Tarima de listones de madera de ipe para exteriores 100 x 30 x 1200mm atornillados a bastidor con tornilleria de acero inoxidable avellanada/Deck, 100 x 30 x 1200mm ipe wood boards for exterior use screwed to frame with countersunk stainless steel screws

23. Sub-estructura de apoyo de tarima de acero galvanizado. Larguero TR 70.40.3 y pies derechos TC 40.4 / 1250mm/Galvanised steel sub-structure supporting decking. Joist 70x40x3 rectangular hollow section and pedestals 40x4 square hollow section every 1250 mm

24. Protección de grava diámetro 16/32mm de canto rodado de 5cm de espesor mínimo/Protective layer, smooth gravel, diam. 16-32 mm, min. 5cm thick

25. Capa separadora antipunzonante de fieltro sintético geotextil filtrante tipo Feltemper 150 de poliester de Intemper/Puncture-resistant separation layer, synthetic geotextile felt filter, Feltemper 150 polyester type for exterior use

26. Aislamiento térmico de planchas rígidas de poliestireno extruido tipo IV, Roofmate SL 40mm de intemper/Thermal insulation, rigid type IV extruded polystyrene sheets, Roofmate SL 40mm for exterior use

27. Capa separadora antiadherente de polietileno flotante sobre la membrana/Non-stick separation layer, floating polythene sheeting over membrane
